This project was subcontracted by the Main Contractor to LUX Electrical Enterprise, located at Dewan Setia Perkasa 10, Putrajaya. The project encompassed three primary technical scopes, executed over a three-month duration under the stringent supervision of JKR Putrajaya, and has been successfully handed over to the client.
Professional Audio Reinforcement System:
Mixing Consoles: Deployment of Yamaha TF3 and MG16XU mixers for versatile front-of-house (FOH) control.
Amplification & Processing: Powered by Bose PowerSpace P2600A, PowerShare PSX4804D, and ControlSpace ESP-880A DSP for precise signal management.

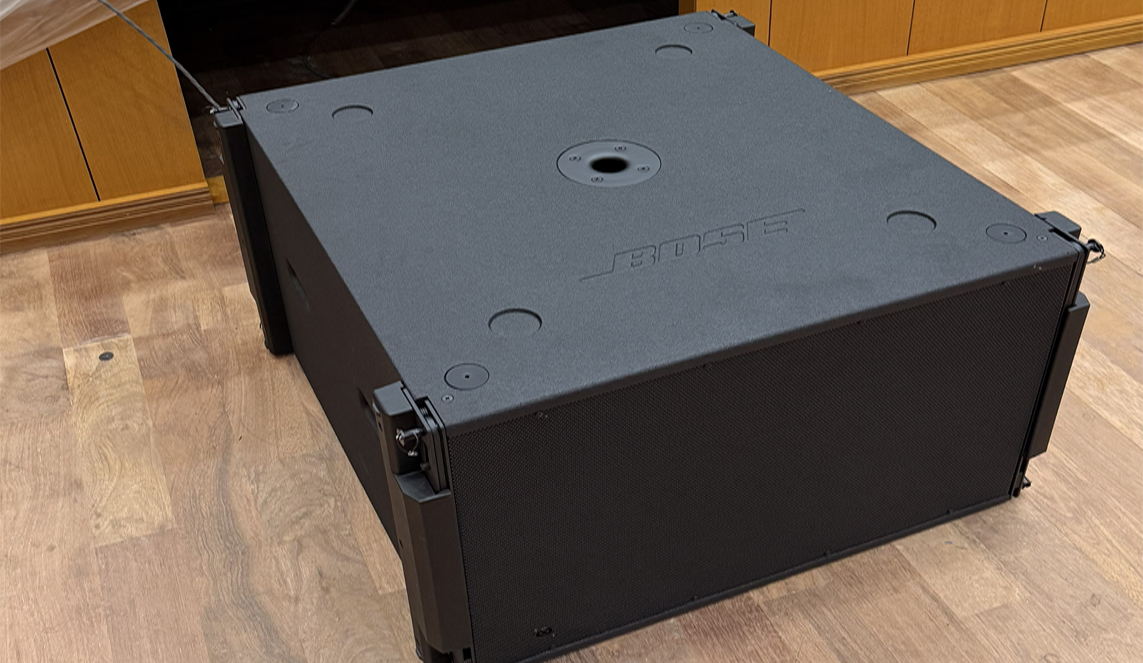

Loudspeaker Array: Installation of a Bose ShowMatch DeltaQ Array system (comprising SM5, SM10, and SMS118 Subwoofers) for optimized sound distribution.
Fill & Monitoring: Strategic placement of Bose AMM108 multipurpose speakers, VXS5 surface-mount speakers, and Yamaha HS5 studio monitors.
RF Management: A comprehensive wireless microphone suite featuring Shure BLX and SLXD series (Handheld SM58 and Headworn SM35 variants).
Power Management: Utilized Furman CN3600SE power sequencers for equipment protection and automated startup.
“A key deliverable for this project is the seamless integration of the sound system and a quad-unit LED display managed through an upgraded control interface.”
Stage Lighting & Rigging System:
Control Interface: Integration of Vorlane Sunny DMX 512 and DMX-1U-8 controllers for complex lighting choreography.
Luminaires: Deployment of Vorlane VL-690 Dyeing Light (Moving Heads) and VL-AP-P54 RGBW (PAR lights) for high-intensity color mixing and visual effects.
Motorization: Installation of Motorized Lighting Barrels to facilitate flexible height adjustments and maintenance accessibility.
Integrated CCTV Surveillance System:
To ensure comprehensive 24/7 security monitoring, a full-spectrum Dahua ecosystem was implemented:
Recording & Display: High-definition recording via the Dahua DHI-NVR4416-16P-EI (16-Channel PoE NVR) paired with dedicated Dahua Monitoring Displays.
Imaging: Installation of Dahua DH-IPC-HDBW2841R-ZS Dome Cameras, featuring motorized vari-focal lenses for superior perimeter surveillance.
